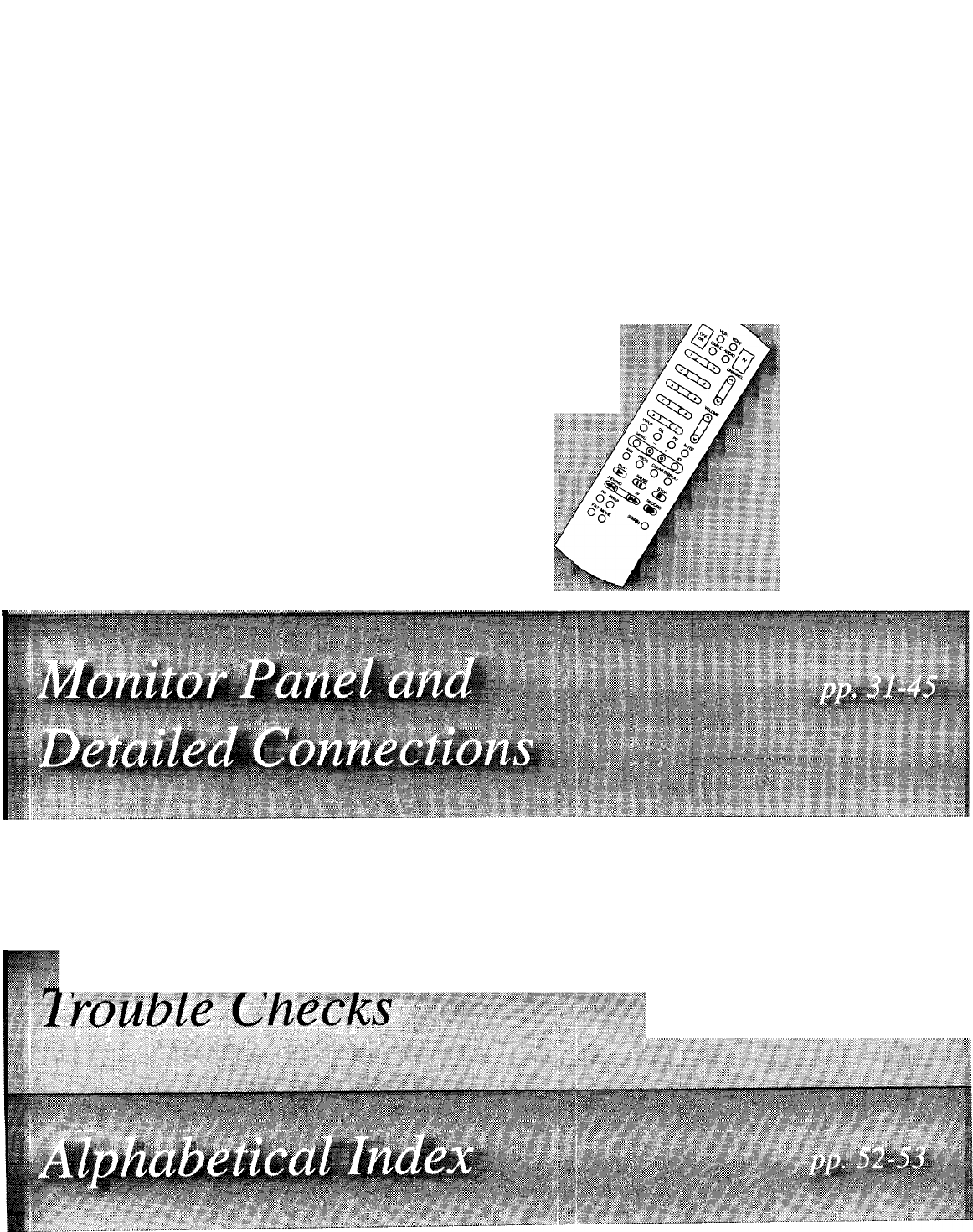

Itc/Iy'j I Ul 'r^1r,v T\/Owner's ManualFirst-Time Operationpp. 2-7-------------------------------------------------Complete Operator&ap

First-Time Operation1. Unpack the camcorder and accessories.• Save the packing materials and box in case you ever need to ship or store your camcord

First-Time Operation (continued)2. Attach a Power Supply: Adapter/Charger or Charged Battery.A. Adapter/Charger1. Connect one end of the DC power co

4. Attach lens cap to the lens cap holder.A. Pull tab on side of the lens cap to remove it from lens on camcorder.First-Time Operation (continued)Ta

7. Tiirn on the camcorder and place the ON/POWER SAVE lever ON*.POWER (CAM/OFF/PLAY) SwitchFirst-Time Operation (continued) r : ?A. Press and hold t

First-Time Operation (continued)¡IIIBIIIliliilBImSM11. Play back what you have recorded.A. Press the thumb trigger to stop recording.B. Place the POW

First-Time Operation (continued)12. Review the camcorder controls, (continued)ADJ. (Adjust) ButtonDATE/TIME ButtonCOUNTER RESET and MEM (Memory) Butto

Remote ControlInstall Remote Batteries1. Turn the remote over and slide the battery compartment cover off.2. Insert the batteries so their positive (

Remote Control (contimied)Remote Buttons (continued)(T) RECORD START/STOP Button• Press and release the RECORD START/STOP button when the POWER switch

Adapter/ChargerThe adapter/charger lets you power your camcorder directly from standard household power. It operates on 100-240 volts, 50/60 Hz, so it

Rechargeable BatteryThe battery must be charged before it can be used the first time. Initial charging will take approximately one hour. When fully ch

Product RegistrationPlease fill out the produet registration card and return it immediately. Returning this card allows us to contact you if needed.Ke

Rechargeable Battery (continued)Powering Your CamcorderWARNING: NICKEL CADMIUM BATTERY MUST BE DISPOSED OF PROPERLY.Attach the Charged Battery1. If th

Optional RCA DCC05 Car Cord Adapter/ChargerThis adapter/charger allows you to power your camcorder from the cigarette lighter socket of a car, truck,

RCA Video CassettesWe recommend RCA cassettes be used with your camcorder. Use of poor quality or damaged tapes can contaminate the video heads, resul

Special FeaturesEarphone Jack Q (Located onCamera EditThis feature lets you position the tape while the camcorder is in record-pause.• Press and hold

Date and Time DisplayADJ. (Adjust) DATE/TIME Button ^ ButtonDisplay in ViewfinderMonthDayYearAM 12:00:00\ I /1. 1.1993- Hours and AM or PM-MinutesS

ViewfinderThe camcorder’s viewfinder is a miniature black-and-white monitor that displays the picture seen by the camcorder. The viewfinder can also b

Displays in Viewfinder©©LP appears when you play back a tape recordedin LP speed.Status Displays•REC appears when the camcorder is recording.•PAUSEfla

Displays (continued) Power ZoomingTime Counter with Memory StopThe time counter appears here during recordingand playback.• Press the COUNTER RESET bu

Focusing Your CamcorderAuto FocusIf you want the camcorder to focus for you automatically, set iheAUTO LOCK switch to AUTO LOCK.The camcorder will aut

Preset Program ModesThe camcorder has several preset program modes for particular recording situations. It will automatically set shutte

SAFETY PRECAUTIONSYour video camcorder’s AC adapter/charger will operate on 120-240 volts AC, 50/60 Hz, and has a polarized plug. Because one blade of

Time Counter with Memory StopThe time counter display shows the actual time elapsed when recording or playing back a tape. The time counter quickly lo

Camcorder Recording TipsilliMlillillllllllilBMake a video recording of your home and contents to store in a safe place in case of fire or theft.Practi

Care and MaintenanceiiilCamcorder Care and Storage• Keep dust and grit from entering the camcorder’s cassette door. They are abrasive and cause excess

yieWfindef Playback ^ 1^5 1 Viewfinder playback is a way to watch tapes in black and white using the camcorder. To hear the sound on the tape, conn

Playback on TV or VCR Using/117£>/0/V/Z)£’i)/V JacksTo connect your camcorder to a TV or VCR AUDIO/VIDEO /V jacks, use the audio/video cables that

Playback on TV or VCR (continued)MmPlayback Operation and How to Copy Tapes on the VCR1. A. Camcorder connected directly to TV monitor:Turn on the TV

Playback on a TV without AudioA^ideoInputsTo connect your camcorder to a TV without audio and video inputs, you need an optional CRF800 RF output adap

Playback on a TV without AudioAldeo Inputs (continued)Playback Operation1. Set the CHANNEL 4CH/3CH switch on the RF output adapter to 4CH or 3CH.2. T

Trouble Checks :t roubles sometimes are caused by simple “faults” that you can easily correct without the help of a service technician by first check

Trouble Checks (continued)TroubleChecks and AdjustmentsPoor auto-focus operation• Make sure AUTO LOCK switch is in the AUTO LOCK position.• Scene is d

IMPORTANT SAFEGUARDSIn addition to the careful attention devoted to quality standards in the manufacture of your video product, . safety is a major fa

Design SpecificationsGeneralPower requirement: 6VDCPower consumption: 5.2 W 'Weight: 1.7 lbs. (780g)Dimensions: 4-3/5"(W) x 4-3/5"(H)

Compact Camcorder Limited WarrantyWhat your warranty covers:• Any defect in material or workmanship.• 90 days for labor charges.• One year for parts.T

IndexAccessories, Included...8Accessories, Optional...,...4-7Access

Index (continued)Order Form, Accessory...Output Jacks (Yellow Video, DC, andWhite Audio)...

ncilFor your nearest Fiome Entertainment Dealer or Authorized Servicenter call toll-free in the U.S.A.1-800-336-1900Thomson Consumer Electronics 600

IMPORTANT SAFEGUARDS (continued)12. Outdoor Antenna Grounding—If an outside antenna or cable system is connected to the video product, be sure the ant

Optional AccessoriesTo order accessories, contact your local dealer, call toll-free, or use the order form on the next page.AC025A Soft Carrying CaseC

Accessory Order Form193983 Cable TransformerThis 300-to-75 ohm transformer is used to connect a standard 300-ohm antenna twin-lead to a standard round

Accessory Order Form (continued)Charge your order on your VISA or MasterCard by filling in belowusp: your credit cardIMPORTANT: Copy complete account

Optional Tripod or Monopodm S ::illliliAC035 Super Lightweight TripodThis tripod’s fluid-effect head provides smooth camera pan and tilt. The quick-re
